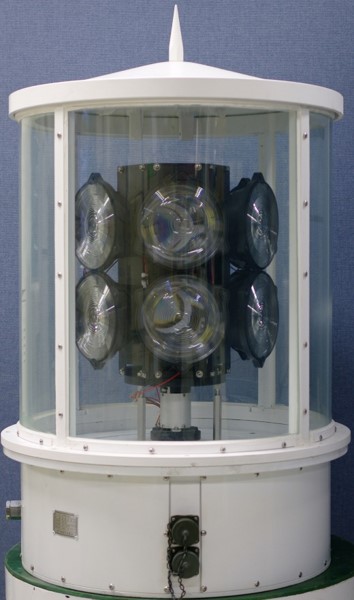

Marine Signal Lantern

DKRB-LED400 중형등명기(회전식 400㎜)

Specifications

ㆍLenses : High efficiency acrylic Fresnal lenses
ㆍOptical arraus : Traingular, Tetragonal, Hexagonal
ㆍVertical divergence : 2˚
ㆍHorizontal divergence : 2˚
ㆍSpeed of revolution : 1 ~ 3RPM
ㆍFixed Intensity : 320,000cd
ㆍEffective Intensity : 210,000cd @ 1RPM
ㆍNominal visibility ranges : Up to 22NM
ㆍPower consumption : Less then 100W
ㆍOperation temperature : -30 ~ +60

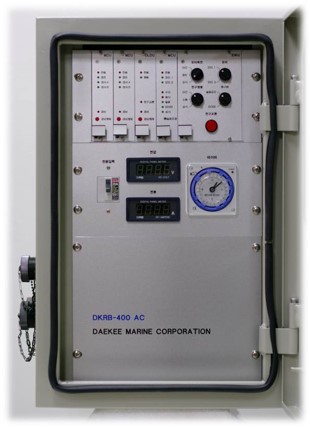

ㆍWeight : Lantern(115kg), Controller(22kg)



Features

ㆍHigh performance Blushless DC Moter(DD motor)
ㆍAvailable flash cahracters : Fl4s ~ Fl20s, adjustable
ㆍAvailable Colors : White
ㆍRemote monitoring and control
ㆍRS-232 Communication port

Applications

ㆍMark territorial, Mark headlands, Entrance to ports

Notes: Specifications are subject to change.
